Sending Skype Chat Messages using Delphi
Skype's API and Chat Command as Message Service

In the August 2005 issue of The Delphi Magazine, I covered the usage of the Skype API from within a Delphi application. One of the example applications I’ve designed and implemented in that issue was a Skype answering machine.It has been running for a while on my personal web server, but is now disconnected again (frankly, it took too many resources, and the quality of the incoming voice messages was too low to make it worthwhile to continue anyway).
Skype 2.0 introduced some new features to Skype, including video calling.This is not an article about video calling, however, but about another feature which has been available in Skype for some time: chatting.The Skype API protocol level 5 and later support the functionality to manually start a chat session (without using the Skype client itself).
This article explains how to use the Skype API to start a chat, send a message, and end a chat, combining these commands into a simulated Skype SMS application.

Skype API
If you don’t know what Skype is or how to use it, I recommend a visit to http://www.drbob42.com/Skype and/or the article I wrote for The Delphi Magazine issue #120.I won’t repeat how to download Skype or how to use the Skype API in a Delphi application – please either download my example source code or read the article for more details.
For the example in this article, I assume you have the Skype client version 1.3 or later installed on your machine (the minimum Skype API protocol level that supports chats is protocol 5, which if I remember correctly was the level of Skype version 1.3, or perhaps even earlier versions).Most people will run a newer Skype client nowadays, and although it’s recommended to check for the supported protocol level, I leave that as exercise for the reader.
Basically, in order to produce a Skype plug-in application, we need to setup a communication between our application and the Skype client.We first need to register two Skype client specific Windows messages, called SkypeControlAPIDiscover and SkypeControlAPIAttach.

  procedure TfrmSkype.FormCreate(Sender: TObject);
  begin
    WM_SkypeControlAPIDiscover := RegisterWindowMessage('SkypeControlAPIDiscover');
    WM_SkypeControlAPIAttach := RegisterWindowMessage('SkypeControlAPIAttach');
    SendMessage(HWND_BROADCAST, WM_SkypeControlAPIDiscover, Handle, 0)
  end;

In response to the WM_SkypeControlAPIDiscover message, the Skype Client – when active – will respond with a WM_SkypeControlAPIAttach message, holding the SkypeAPIWindowHandle in the WParam part of that message.

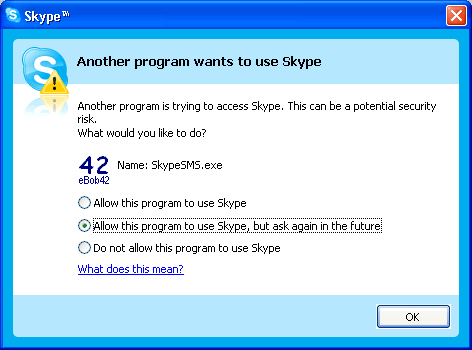

First, however, you may see a dialog from the Skype Client, informing the enduser that a new application wants to make use of the Skype Client, as follows:

When the enduser has allowed the new application permission to access the Skype Client, we actually get the SkypeAPIWindowHandle, as follows:

  procedure TfrmSkype.WndProc(var Message: TMessage);
  begin
    if Message.Msg = WM_SkypeControlAPIAttach then
    begin
      if Message.LParam = 0 then
        HWND_SkypeAPIWindowHandle := Message.WParam;
      Message.Result := 1
    end
    else
      inherited
  end;

Once we have the Skype Client Window Handle, we can send Skype API commands to it using the WM_CopyData message, which can be done with the following method:

  procedure TfrmSkype.SendCommandToSkype(const Str: String);
  var
    CopyData: CopyDataStruct;
  begin
    if Str <> '' then
    begin
      CopyData.dwData := 0;
      CopyData.lpData := PChar(Str);
      CopyData.cbData := Length(Str)+1;
      SendMessage(HWND_SkypeAPIWindowHandle, WM_COPYDATA, Handle, LPARAM(@CopyData))
    end
  end;

Skype Chat Command
The Skype API consists of a number of commands that can be sent to the Skype Client window using the WM_CopyData windows message.As of protocol level 5, the Skype API is extended with support for Skype chats.Skype users are identified by their Skype handle (I have Skype handles eBob42 and drbob42 for example).In order to start a Skype chat with Skype user drbob42, you need to send the following command:

  CHAT CREATE drbob42

If the specified user with Skype handle drbob42 can be reached (even if he or she is “away” or “not available” or has the status “do not disturb”, but not if the Skype user is not online), then the Skype client will respond with the following:

  CHAT id STATUS DIALOG

Where id is the unique chat id that is given to this new chat.We must use this chat id for the remainder of the chat, for example to send chat messages or close the chat when we’re done (otherwise the chat will close automatically if the user disconnects).The format of the id doesn’t matter at this time, we just need to obtained the id and use it from now on.
The code to extract the id from the incoming message can be found in the following listing, which is the WMCopyData method:

  procedure TfrmSkype.WMCopyData(var Message: TWMCopyData);
  var
    ID: String;
  begin
    if (Message.From = HWND_SkypeAPIWindowHandle) and
       (HWND_SkypeAPIWindowHandle > 0) then
    begin
      ID := PChar(Message.CopyDataStruct.lpData);
      if Pos('CHAT', ID) = 1 then
      begin
        Delete(ID,1,5);
        if Pos('STATUS DIALOG', ID) > 0 then
        begin
          Delete(ID,Pos('STATUS DIALOG', ID),255);
          SendCommandToSkype('CHATMESSAGE ' + ID + ChatMessage)
        end
      end;
      Message.Result := 1
    end
  end;

As soon as we have the chat id, we can send one or more messages to that id, with the following command:

  CHATMESSAGE id ChatMessage

Where ChatMessage is the actual message you want to send (can be multiple lines of text if you wish).
Finally, when you want to end a chat, you can send the following command to the Skype Client:

  ALTER CHAT id LEAVE

This will ensure that the receiving end will get the message that you’ve left the chat.

Simulating SMS using Skype Chat
SMS, or Short Message Service, consists of the ability to send a short text message to a mobile phone.In chat building blocks, sending an SMS can be simulated by starting a chat, sending a single message, and then leaving the chat right away.As long as the user you want to send the message to can be reached (i.e.is not offline), the chat message will be received.When that user has the status “do not disturb”, then the incoming message will not be shown on screen, but in the event log of the Skype Client.Otherwise, the message will appear on screen right away.
Using this knowledge, I’ve built a simple Skype single message service unit, with one exported procedure defined in the interface section as follows:

  procedure SendSkypeSMS(const Handle: String = ''; const Message: String = '';
    AutoSend: Boolean = False);

Note that all arguments have default values. When the Handle and Message have been specified, and True is passed as value for the AutoSend parameter, then the Skype message is automatically send.

The implementation of the unit uses a hidden form, and contains the following code:

  implementation
  uses
    Windows, Messages, Forms, StdCtrls, Registry;

  {$R *.dfm}

  type
    TfrmSkype = class(TForm)
      edMessage: TEdit;
      edID: TEdit;
      lbHandle: TLabel;
      lbMessage: TLabel;
      btnSMS: TButton;
      procedure FormCreate(Sender: TObject);
      procedure btnSMSClick(Sender: TObject);
    private
      WM_SkypeControlAPIDiscover: DWord;
      WM_SkypeControlAPIAttach: DWord;
      HWND_SkypeAPIWindowHandle: Cardinal;
    protected
      procedure SendCommandToSkype(const Str: String);
      procedure WndProc(var Message: TMessage); override;
      procedure WMCopyData(var Message: TWMCopyData); message WM_COPYDATA;
    private
      ChatID: String;
    end;

  var
    frmSkype: TfrmSkype = nil;

  function SkypeClientLocation: String;
  var
    Reg: TRegistry;
  begin
    Result := '';
    Reg := TRegistry.Create(KEY_READ);
    try
      Reg.RootKey := HKEY_LOCAL_MACHINE;
      if Reg.OpenKey('SOFTWARE\Skype\Phone', False) then
        Result := Reg.ReadString('SkypePath')
    finally
      Reg.Free
    end
  end;

  procedure SendSkypeSMS(const Handle: String = ''; const Message: String = '';
    AutoSend: Boolean = False);
  begin
    if SkypeClientLocation <> '' then
    begin
      if not Assigned(frmSkype) then
        frmSkype := TFrmSkype.Create(Application);
      frmSkype.ChatID := '';
      frmSkype.edID.Text := Handle;
      frmSkype.edMessage.Text := Message;
      if (Handle <> '') and (Message <> '') and AutoSend then
        frmSkype.SendCommandToSkype('CHAT CREATE ' + Handle)
      else
        frmSkype.ShowModal
    end
    else
      MessageBox(Application.Handle,
       'The Skype client is not installed (or not found).'#13#10 +
       'Please download Skype from http://www.skype.com',
       'Dr.Bob''s Skype SMS Sender', MB_OK);
  end;

  procedure TfrmSkype.FormCreate(Sender: TObject);
  begin
    WM_SkypeControlAPIDiscover := RegisterWindowMessage('SkypeControlAPIDiscover');
    WM_SkypeControlAPIAttach := RegisterWindowMessage('SkypeControlAPIAttach');
    SendMessage(HWND_BROADCAST, WM_SkypeControlAPIDiscover, Handle, 0)
  end;

  procedure TfrmSkype.WndProc(var Message: TMessage);
  begin
    if Message.Msg = WM_SkypeControlAPIAttach then
    begin
      if Message.LParam = 0 then
        HWND_SkypeAPIWindowHandle := Message.WParam;
      Message.Result := 1
    end
    else
      inherited
  end;

  procedure TfrmSkype.SendCommandToSkype(const Str: String);
  var
    CopyData: CopyDataStruct;
  begin
    if Str <> '' then
    begin
      CopyData.dwData := 0;
      CopyData.lpData := PChar(Str);
      CopyData.cbData := Length(Str)+1;
      SendMessage(HWND_SkypeAPIWindowHandle, WM_COPYDATA, Handle, LPARAM(@CopyData))
    end
  end;

  procedure TfrmSkype.WMCopyData(var Message: TWMCopyData);
  var
    ID: String;
  begin
    if (Message.From = HWND_SkypeAPIWindowHandle) and
       (HWND_SkypeAPIWindowHandle > 0) then
    begin
      ID := PChar(Message.CopyDataStruct.lpData);
      if Pos('CHAT', ID) = 1 then
      begin
        Delete(ID,1,5);
        if Pos('STATUS DIALOG', ID) > 0 then
        begin
          Delete(ID,Pos('STATUS DIALOG', ID),255);
          if (edMessage.Text <> '') and (ChatID <> ID) then
          begin
            SendCommandToSkype('CHATMESSAGE ' + ID + edMessage.Text);
            btnSMS.Enabled := True
          end
          else
            SendCommandToSkype('ALTER CHAT ' + ID + 'LEAVE');
          ChatID := ID
        end
      end;
      Message.Result := 1
    end
  end;

  procedure TfrmSkype.btnSMSClick(Sender: TObject);
  begin
    ChatID := '';
    btnSMS.Enabled := False;
    SendCommandToSkype('CHAT CREATE ' + edID.Text)
  end;

  end.

Note that the TFrmSkype is used to register the two Skype Windows messages, and for sending and receiving the WM_CopyData message. The form itself is designed as follows:

Although this form is designed to allow the user to enter the Skype handle and message, this form will only be shown when needed.If you pass a value for the Skype Handle and Message, and pass True for the AutoSend parameter, then the Skype “SMS” message will automatically be sent, as demonstrated in the following example:

  program SkypeSMS;
  uses
    eBob42.SkypeSMS;
  begin
    SendSkypeSMS('SkypeSMS42','Skype SMS is fun!', True)
  end.

If however you call the SendSkypeSMS method without a Skype ID or message, and without passing True as third argument, then the dialog will appear, which allows you to specify the handle and message yourself before you can click on the Send SMS button.This allows for flexibility as well as direct Skype SMS services when needed.

When you receive a Skype chat message, a tray icon pop-up window will appear briely (in the lower right corner of the screen), for example as follows:

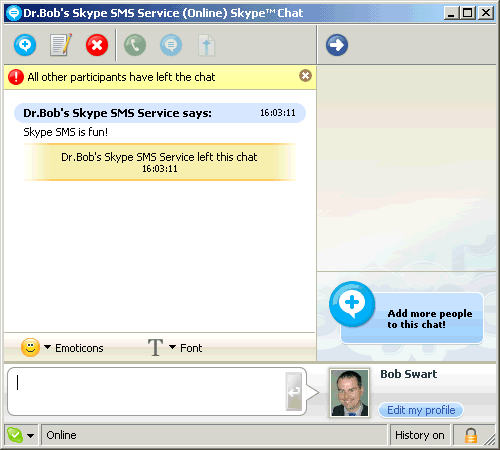

At the same time, if the user to whom the Skype chat message was sent is not unavailable, the chat window is opened, for example as follows:

Note that the chat session is immediately ended after the single message is sent, so this technique is not useful for inviting someone to chat (if you want that, you should open your own chat window, since the Delphi application will not open one for you).

Full source code of this example and other Skype plug-ins and applications can be downloaded from my Skype Calls section. If you have any comments, feel free to let me know (for example as comment in my blog).
